Minsu Kang, Sungjae Kim, and Injung Kim (Handong Global University)
Abstract
We propose a novel high-fidelity expressive speech synthesis model, UniTTS, that learns and controls multiple non-hierarchically correlated attributes without conflict.
UniTTS represents phonemes and non-linguistic attributes in a single unified embedding space.
The proposed method is particularly effective in reflecting both speaker ID and emotion because it does not add the variance by the two overlapping attributes redundantly, and predicts prosodic attributes based on the speaker and emotion IDs.
UniTTS learns the unified embedding space leveraging a residual network that extends FastSpeech2.
We additionally applied a data augmentation technique to improve the fidelity and controllability over the non-linguistic attributes.
In experiments, the visualization results exhibited that UniTTS successfully learned multiple attributes in the unified embedding space.
As well, UniTTS synthesized high-fidelity speech signals while controlling multiple attributes, and transferred speech style from the reference speech.
Visualization of Latent Space
These visualization results illustrate the latent space of style attributes modeled by UniTTS.
Unstyled phoneme embeddings
(a) Unstyled phoneme embeddings colored by phoneme type
(b) Unstyled phoneme embeddings colored by speaker label
(c) Unstyled phoneme embeddings colored by emotion label
These figures are the t-SNE visualization of the distribution of the unstyled phoneme embeddings extracted from the locations marked as A in Figure 3 (please refer the paper).
(a) shows that the unstyled phoneme embedding represents phoneme types, while (b)and (c) show that it does not contain speaker or emotion information.
Residual embeddings
(a) t-SNE visualization of speaker embeddings (B-A) colored by speaker label
(b) t-SNE visualization of emotion embeddings (C-B) colored by emotion label
(c) PCA visualization of pitch embeddings (E-D) colored by predicted pitch value
(d) PCA visualization of energy embeddings (F-E) colored by predicted energy value
These figures are the distribution of the residual embeddings of speaker, emotion, pitch, and energy. (Please note that A, B, C, D, E and F are denoted in paper-figure 3.)
The uppercase letters indicate the locations in Fig. 3 where the embeddings were extracted.
These figures show that the residual embeddings are effective in representing the style attributes.
Full style embeddings
(a) Full-style embeddings(F-A) colored by speaker label
(b) Full-style embeddings(F-A) colored by emotion label
(c) Full-style embeddings normalized by speaker embedding (F-B) colored by speaker label
(d) Full-style embeddings normalized by speaker embedding (F-B) colored by emotion label
These figures are the t-SNE visualization of the distribution of the full-style embeddings that incorporate all style attributes.
The uppercase letters indicate the locations in Fig. 3 where the embeddings were extracted.
(a) and (b)show that the full-style embedding contains both speaker and emotion information.
(c) shows that the full-style embedding normalized by the means of the speaker embeddings does not contain speaker information.
(d) shows that the variance in emotion is dominant after normalizing the full-style embedding by the means of speaker embeddings.
Speaker Modeling
These audio samples demonstrate the speaker modeling performance of UniTTS.
Please compare the audio samples focusing on the similarity in speaker characteristics between the ground-truth and the synthesized samples.
- Column 1: the ground-truth samples.
- Column 2~4: audio samples demonstrating UniTTS's speaker(or emotion) modeling performance with other expressive TTS models
: Column 2: FastSpeech2 extended by applying GST for extracting style embedding from the reference sample (for comparison)
: Column 3: UniTTS using separate embeddings for speaker ID and emotion (for comparison)
: Column 4: UniTTS using unified embedding (proposed)
- Columns 5~7: audio samples demonstrating the effects of the techniques used in UniTTS
: Column 5: UniTTS not applying data augmentation
: Column 6: UniTTS not applying grapheme-level local prosody modeling
: Column 7: UniTTS not applying grapheme-level local prosody modeling and data augmentation.
GT
GST FastSpeech2 (reference encoder)
UniTTS: separate embeddings for speaker ID and emotion
UniTTS: unified embedding (proposed)
UniTTS - data aug.
UniTTS - local prosody
UniTTS - local prosody - data aug.
Emotion Modeling
These audio samples demonstrate the speaker modeling performance of UniTTS. Please compare the audio samples focusing on the similarity in emotion between the ground-truth and the synthesized samples.
- Column 1: the ground-truth samples.
- Column 2~4: audio samples demonstrating UniTTS's speaker(or emotion) modeling performance with other expressive TTS models
: Column 2: FastSpeech2 extended by applying GST for extracting style embedding from the reference sample (for comparison)
: Column 3: UniTTS using separate embeddings for speaker ID and emotion (for comparison)
: Column 4: UniTTS using unified embedding (proposed)
- Columns 5~7: audio samples demonstrating the effects of the techniques used in UniTTS
: Column 5: UniTTS not applying data augmentation
: Column 6: UniTTS not applying grapheme-level local prosody modeling
: Column 7: UniTTS not applying grapheme-level local prosody modeling and data augmentation.
GT
GST FastSpeech2 (reference encoder)
UniTTS: separate embeddings for speaker ID and emotion
UniTTS: unified embedding (proposed)
UniTTS - data aug.
UniTTS - local prosody
UniTTS - local prosody - data aug.
Speaker and emotion modeling
These audio samples demonstrate the speaker and emotion modeling performance of UniTTS.
neutral
happy
sad
angry
nen speaker mel
nen speaker wav
neo speaker mel
neo speaker wav
ned speaker mel
ned speaker wav
nec speaker mel
nec speaker wav
Effect of Data augmentation
Energy control
The following samples were synthesized by UniTTS with increased or decreased energy values.
- Row 1: the ground truth samples and augmented samples whose energy values were increased or decreased using the SOX toolkit.
- Row 2: the audio samples synthesized by UniTTS applying data augmentation
- Row 3: the audio samples synthesized by UniTTS not applying data augmentation
Without data augmentation, UniTTS produced speech samples with deteriorated quality when the energy value was increased or decreased. Particularly, when the energy value was decreased, it produced severly broken and distorted samples.
However, when applying data augmentation, it produced clean samples even with increased or decreased energy values.
increased energy values
0
decreased energy values
GT mel
GT wavs
w/ data aug. mel
w/ data aug. wavs
w/o data aug. mel
w/o data aug. wavs
Pitch control
The following samples were synthesized by UniTTS with increased or decreased pitch values.
Please note that adjusting the pitch of the voice using the SOX toolkit has a side-effect that changes the timbre as shown in the first row.
- Row 1: the ground truth samples and augmented samples whose pitch values were increased or decreased using the SOX toolkit.
- Row 2: the audio samples synthesized by UniTTS applying data augmentation
- Row 3: the audio samples synthesized by UniTTS not applying data augmentation
Without data augmentation, UniTTS shows limited ability to control pitch, as shown more clearly in the spectrograms.
When applying data augmentation, it controlled pitch more effectively but changed timbre, because it was trained with the augmented samples whose timbre was changed due to the side-effect of the SOX toolkit.
We ask the listener to compare the samples focusing on the ability to control pitch.
increased pitch values
0
decreased pitch values
GT mel
GT wavs
w/ data aug. mel
w/ data aug. wavs
w/o data aug. mel
w/o data aug. wavs

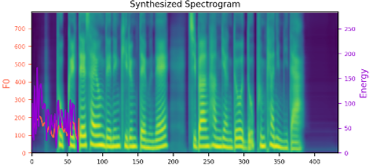

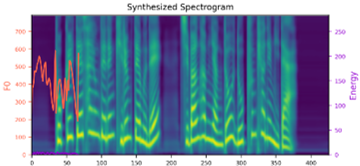

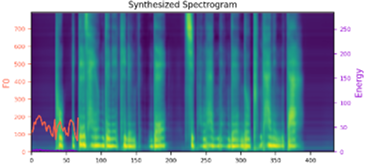

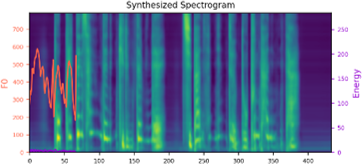

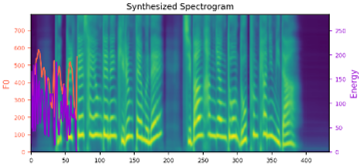

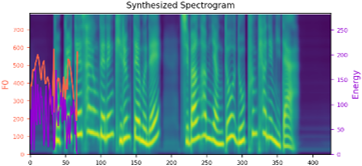

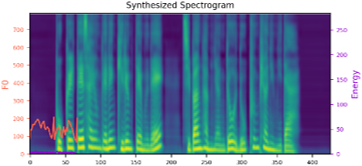

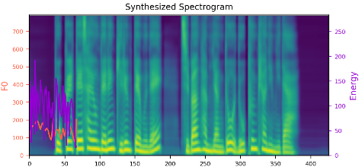

Pitch and energy control
The following samples were synthesized by UniTTS controling both pitch and energy.
Applying data augmenation, UniTTS can effectively control pitch and energy.
0
pitch +, energy +
pitch +, energy -
pitch -, energy +
pitch -, energy -
GT mel
GT wavs
w/ data aug. mel
w/ data aug. wavs
w/o data aug. mel
w/o data aug. wavs
